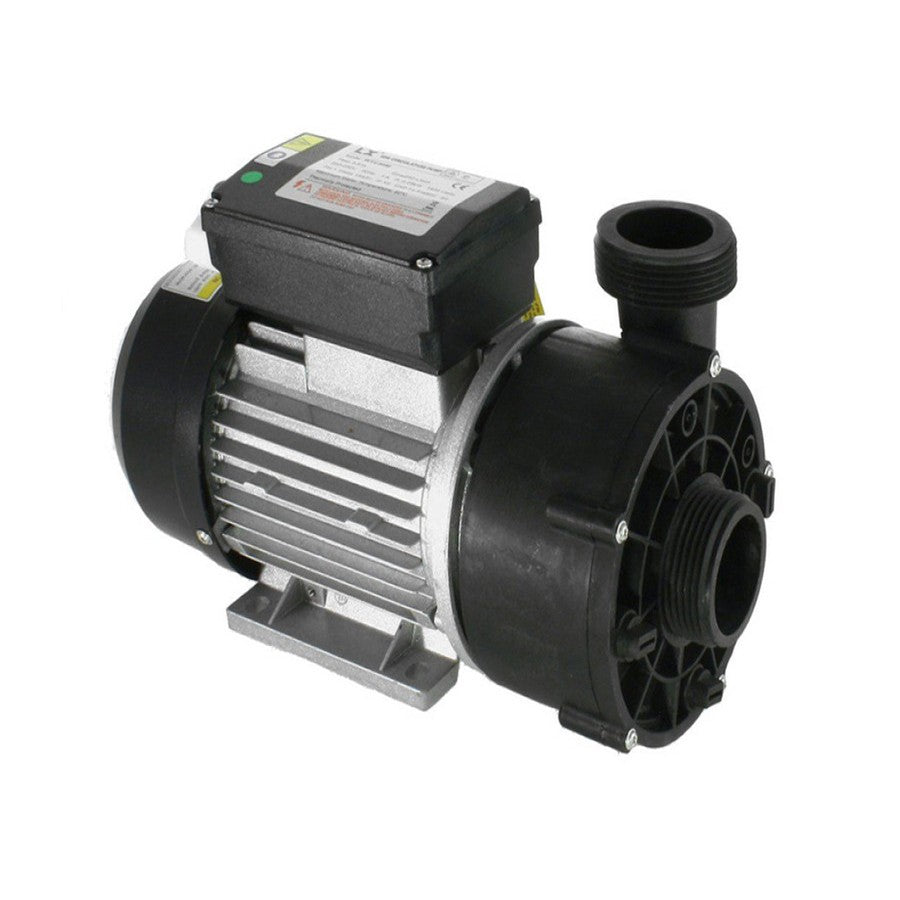

LX WTC120-AB Pump 1.2HP, 1Speed for Blue Whale/Storm Force 7 (WTC120-AB)

LX WTC120-AB Pump

The LX WTC120-AB is a high-performance, single-speed circulation and booster pump specifically designed for hot tubs, swim spas, and whirlpool baths. Known for its reliability and quiet operation, it is most famously used as the direct replacement for the Blue Whale Spa "Storm Force 7" pump.

The LX WTC120-AB is a powerful yet energy-efficient spa pump engineered for reliable water circulation in hot tubs, whirlpool baths, spas, and swim spas. With its centre suction and side discharge design, it is fully compatible with most popular pump layouts, making it a versatile replacement for many global spa brands.

Features:

• Optimal Configuration: The "AB" designation indicates the specific wet-end orientation: Centre Suction (inlet in the middle) and Side Discharge (outlet on the side). This design is engineered to reduce liquid noise and improve flow efficiency.

• Flexible Installation: The wet end is fully rotatable. By removing four motor bolts, you can reposition the discharge to the 3, 9, or 12 o’clock position to match your existing plumbing.

• Durability: Features a thermally protected motor and upgraded Ceramic/Viton shaft seals, which provide superior resistance to spa chemicals and extend the pump's lifespan compared to standard seals.

• Self-Draining: Designed to drain automatically when the motor is switched off, preventing stagnant water buildup and potential freeze damage.

Specifications:

Power (HP/kW): 1.2 HP / 0.90 kW

Speeds: 1 Speed

Electrical: 220-240V / 50Hz

Amperage: 4.6 Amps

Max Flow Rate: 520 Litres/min

Max Head: 11.5 Metres

RPM: 2,900 RPM

Connections: 1.5" FBT (63mm outer thread diameter)

63mm Centre Suction x 63mm Side Discharge

AMP Plug and Cable

Pump Unions included

Dimensions:

Length: 302mm

Width: 165mm

Height: 195mm

Weight: 8.6KG

Compatible Models:

Blue Whale Spas

References: Storm Force 7
