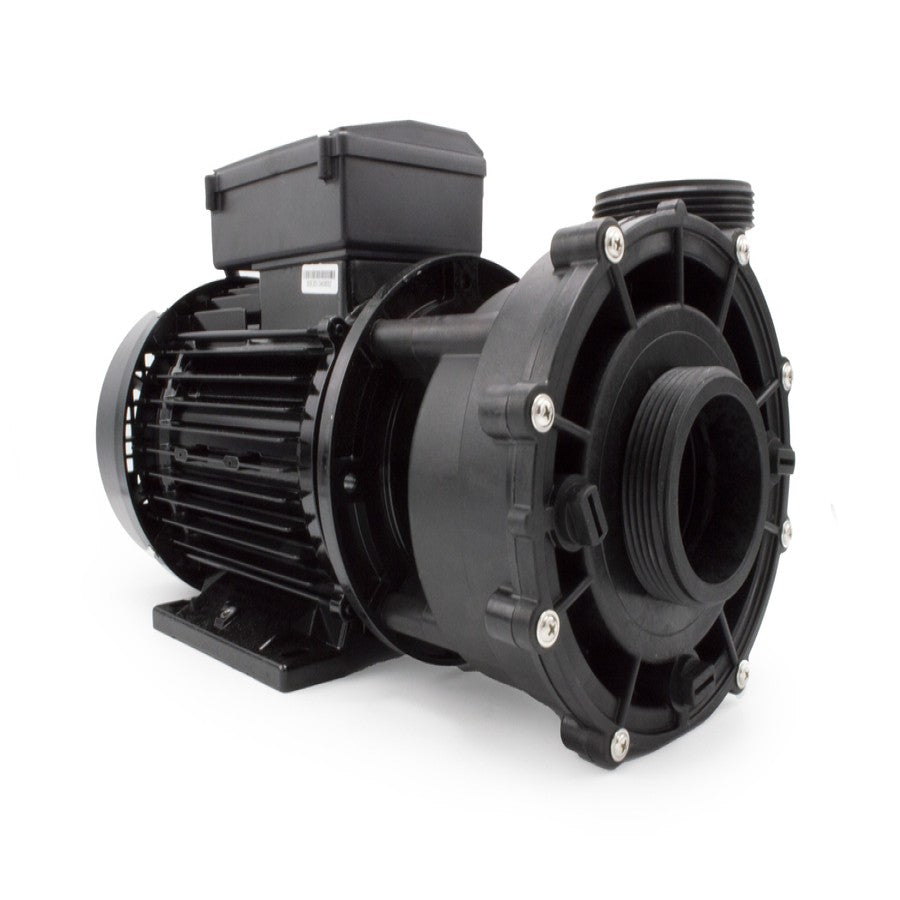

LX WP200-ll Pump - 2HP 2Speed (WP200-ll)

LX WP200-ll Pump

The LX WP200 is a robust 2.0 HP two-speed hot tub pump, designed to deliver both power and efficiency. Equipped with a 4-core plain cable, it provides reliable performance across two speeds, making it ideal for high-performance jet action as well as energy-efficient circulation.

Features:

• Dual-Speed Functionality: Operates at a quiet, low energy draw for filtration (2.4A) and switches to a high-output mode (7.0A) for hydrotherapy.

• Rotatable Wet End: The discharge (outlet) can be rotated to the 3, 9, or 12 o’clock positions by loosening the four motor bolts, making it adaptable to almost any plumbing configuration.

• Upgraded Mechanical Seals: Modern versions of this pump feature Ceramic/Viton shaft seals, which are specifically engineered to withstand the harsh chemical environments of a hot tub (chlorine/bromine) better than standard rubber seals.

• 56-Frame Design: This is a standard motor size in the industry, meaning it has a large, stable footprint and excellent heat dissipation for long-term durability.

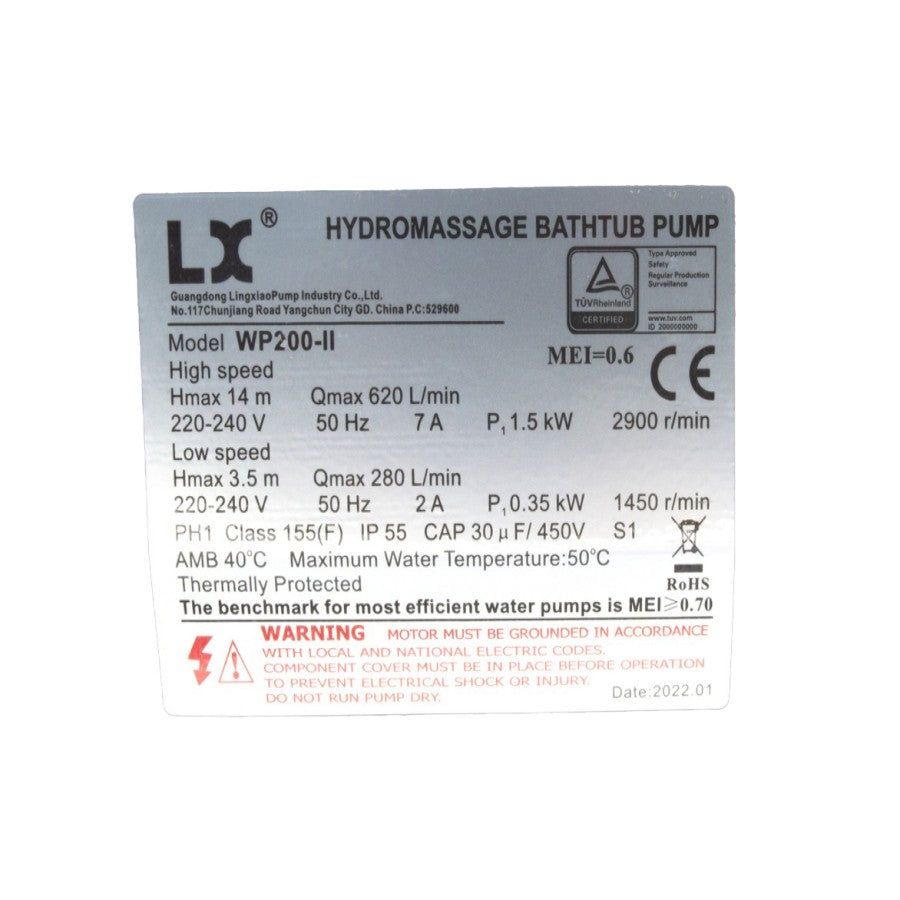

Specifications:

2.0 Horsepower
Two Speeds

2.0" Connections

High Speed: 2HP / 1.5kW / 7 Amps
Low Speed: 0.37HP / 0.35kW / 2 Amps
Max. Head: 14m
Max. Flow: 620 L/min

220-240V / 50Hz

79mm Centre Suction x 79mm Side Discharge

Pump Unions Included

Dimensions:

Length: 434mm

Width: 202mm

Height: 235mm

Weight: 15.5KG

Packed Dimensions:

Length: 460mm

Width: 225mm

Height: 295mm

Weight: 16KG
